Engineering Data Migration

  • EdgePrime can offer you a reliable and compelling course of action fuse the Smart Plant database making/adjustment/support (Convert any type of designing information in to SP database which incorporates SPI , SPE and so on ). For instance checked duplicate of as manufactured instrument circles and SLDs can be changed over as SP information circles.
  • Create / maintain and modify existing 3D plant design in PDS /PDMS using field photos , as built drawings , 2D drawings.

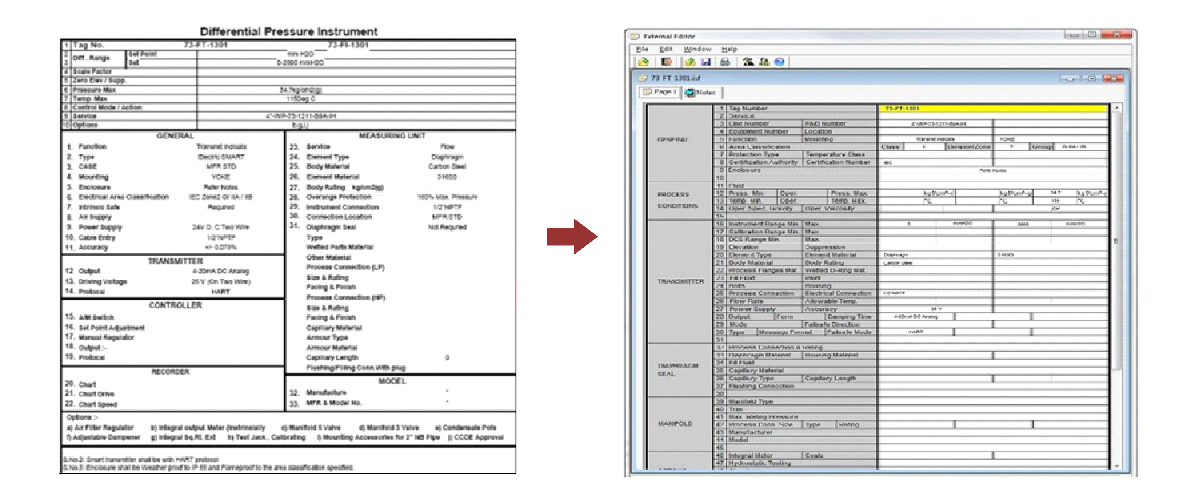

INSTRUMENT DATASHEET TO SPI DATASHEET

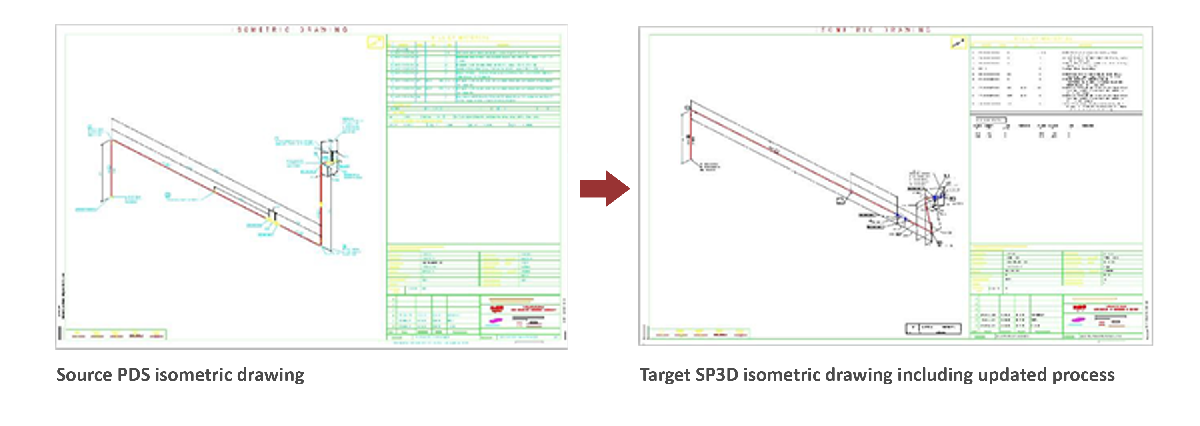

PDS ISOMETRIC DRAWING TO SP3D ISOMETRIC DRAWING

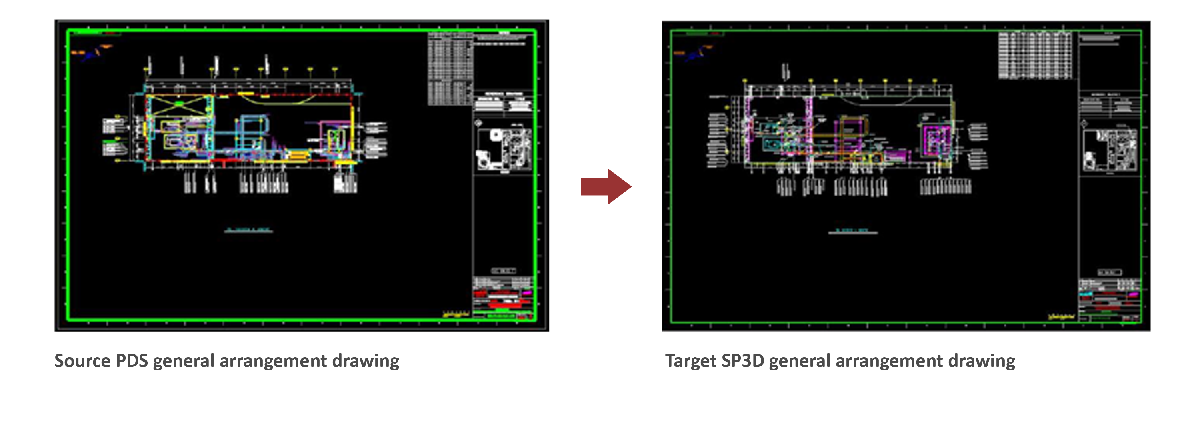

PDS G.A DRAWING TO SP3D G.A DRAWING

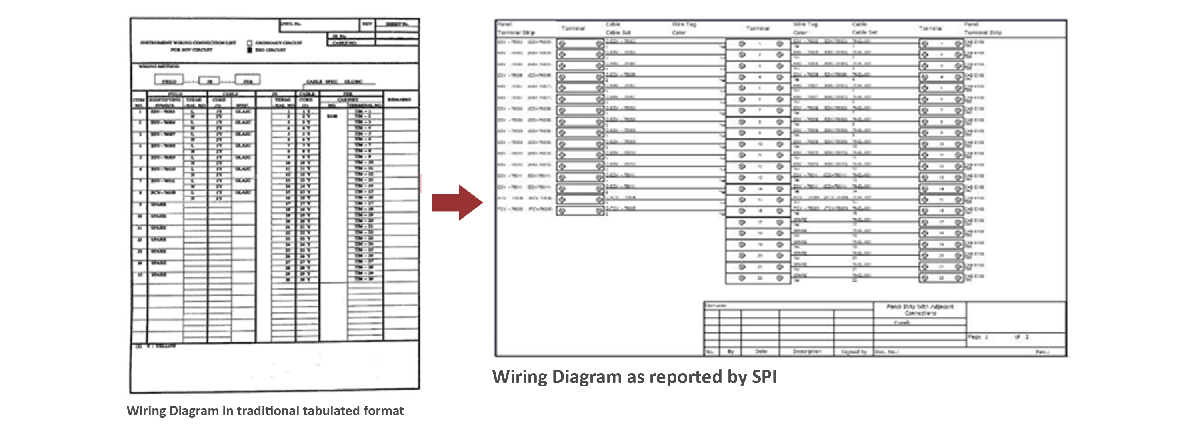

TRADITIONAL WIRING TO SPI WIRING DRAWING

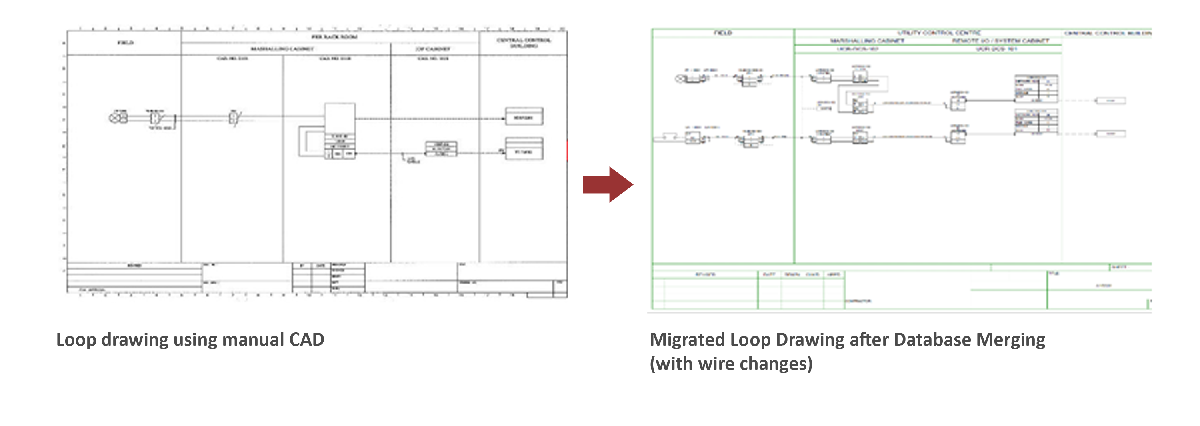

AUTO CAD LOOP DRAWING TO SPI LOOP DRAWING

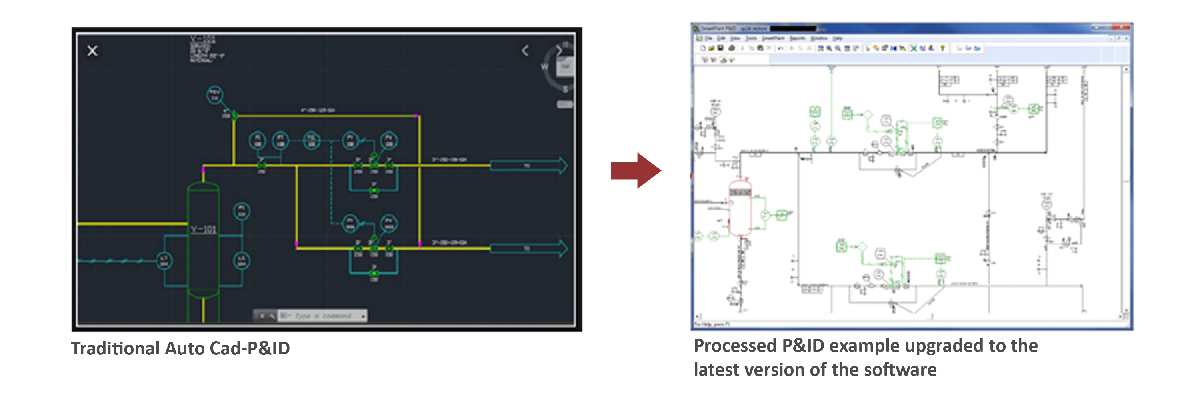

AUTO CAD P&ID TO SP P&ID

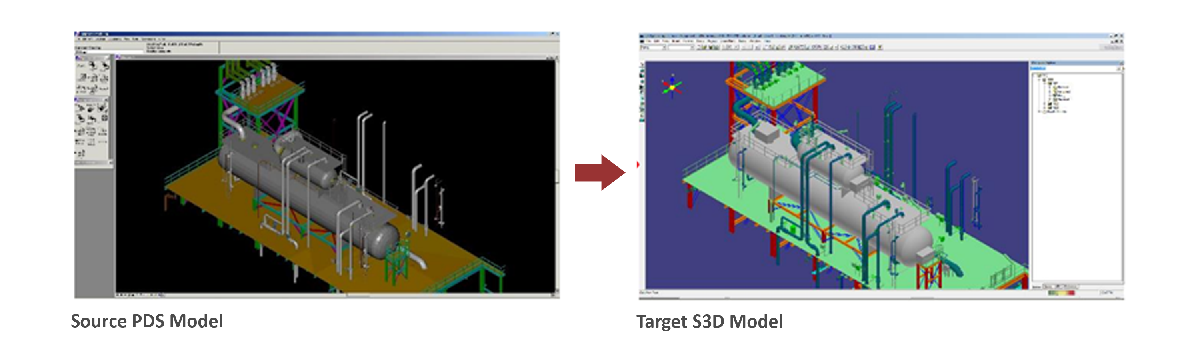

PDS MODEL TO S3D MODEL
